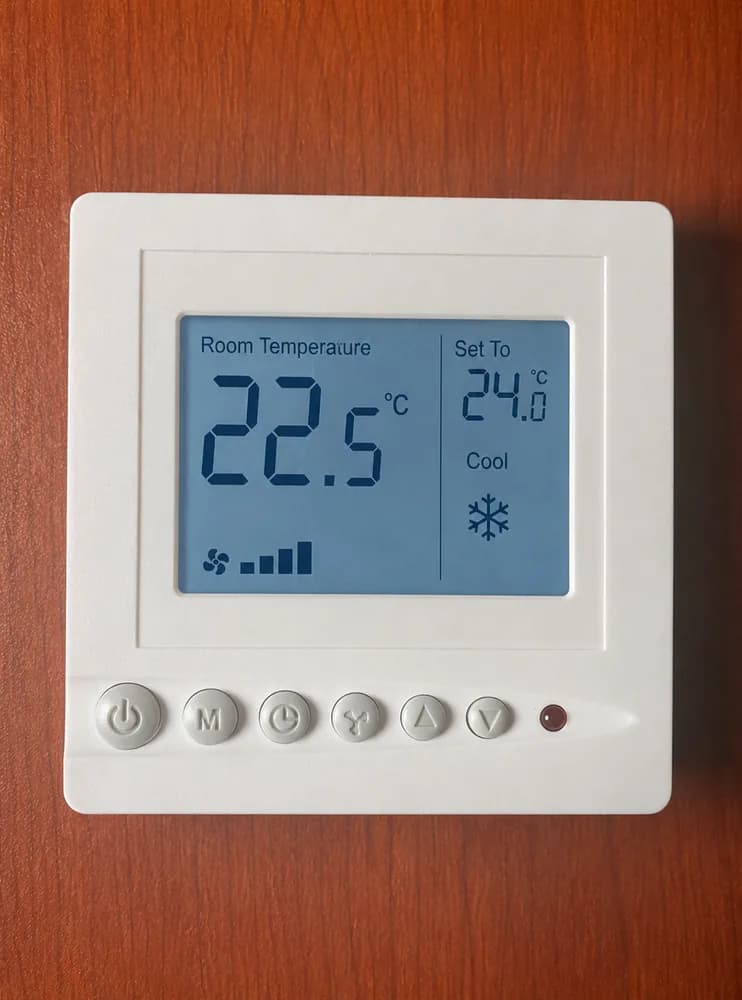

Button Press LoRaWAN Thermostat
- LoRaWAN
- Battery
- Indoor
Simple and robust push-button thermostat with LoRaWAN radio for cost-effective temperature control in residential and light commercial spaces.
Specifications
| Interface | Push buttons + LED display |
|---|---|
| Temperature Range | 5°C – 35°C (setpoint) |
| Accuracy | ±0.5°C |
| Communication | LoRaWAN Class A |
| Power | Battery (2× AA, 2-year life) |
| Compatibility | Electric heating, HVAC relay |
| Protection | IP30 |
| Certifications | CE, RoHS |
Specifications may vary by model and region. Final selection is confirmed during solution design.
Applications
Where the Button Press LoRaWAN Thermostat is used
Wireless thermostats bring room-level temperature control and setpoint enforcement to buildings where running new BMS cable to every room is not practical.
- Fan coil unit control in offices, hotels and residential units
- Central setpoint limits to cut cooling energy
- Occupancy-based setback in hotel rooms and meeting rooms
- Room temperature and comfort reporting to the BMS or CAFM
How it connects
The Button Press LoRaWAN Thermostat is a native LoRaWAN device. It joins any standard LoRaWAN network through a gateway and a network server such as ChirpStack, using the EU868 frequency plan commonly used in the UAE. Its uplinks are decoded on the network server and delivered to your platform, BMS or CAFM over MQTT or REST.
Installation notes for UAE projects
- Thermostats that receive setpoint commands use downlinks; network design accounts for downlink capacity and gateway duty-cycle limits.
- Mains-powered units can operate as LoRaWAN Class C for fast response to commands.
- Setpoint ranges suited to UAE cooling loads are configured centrally.
FAQ
Smart Thermostats — questions
Can thermostats be controlled remotely?
Yes. Setpoints, modes and fan speeds can be changed through LoRaWAN downlinks from your platform or BMS.
Do wireless thermostats integrate with an existing BMS?
Yes. Data and control can be mapped to BACnet or Modbus objects, or exchanged over MQTT or REST, depending on the BMS.
