Touchscreen LoRaWAN Smart Thermostat — LoRaWAN Smart Thermostats

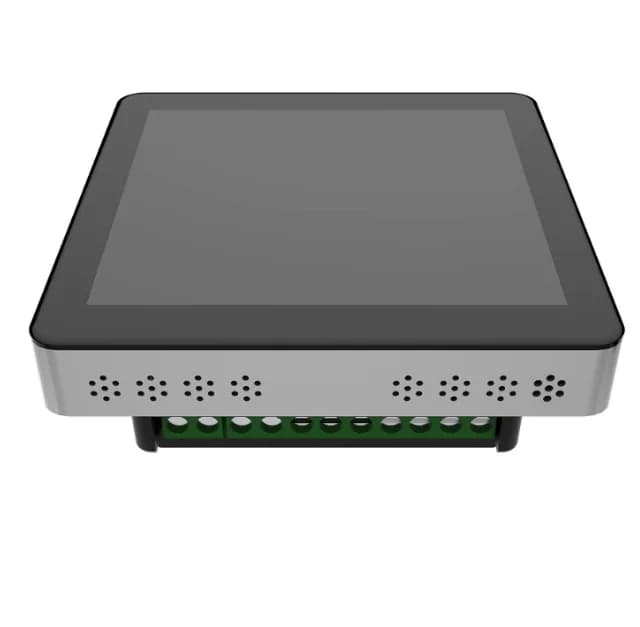

Touchscreen LoRaWAN Smart Thermostat view 2

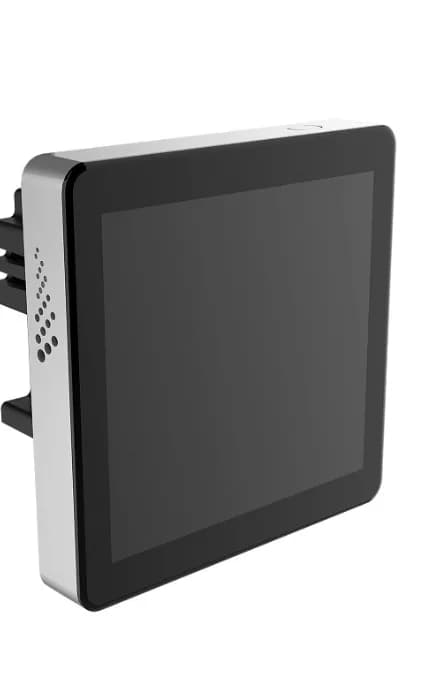

Touchscreen LoRaWAN Smart Thermostat view 3

Smart Thermostats

Touchscreen LoRaWAN Smart Thermostat

  • LoRaWAN
  • AC
  • Indoor

Elegant touchscreen thermostat with LoRaWAN connectivity for centralized HVAC control in hotels, offices, and smart buildings.

Specifications

Display3.5" Capacitive Touch
Temperature Range5°C – 35°C (setpoint)
Accuracy±0.3°C
CommunicationLoRaWAN
Load2A (24VAC)
CompatibilityFan coil, HVAC, Heat pump
Power24VAC or DC adapter
CertificationsCE, FCC

Specifications may vary by model and region. Final selection is confirmed during solution design.

Applications

Where the Touchscreen LoRaWAN Smart Thermostat is used

Wireless thermostats bring room-level temperature control and setpoint enforcement to buildings where running new BMS cable to every room is not practical.

  • Fan coil unit control in offices, hotels and residential units
  • Central setpoint limits to cut cooling energy
  • Occupancy-based setback in hotel rooms and meeting rooms
  • Room temperature and comfort reporting to the BMS or CAFM

How it connects

The Touchscreen LoRaWAN Smart Thermostat is a native LoRaWAN device. It joins any standard LoRaWAN network through a gateway and a network server such as ChirpStack, using the EU868 frequency plan commonly used in the UAE. Its uplinks are decoded on the network server and delivered to your platform, BMS or CAFM over MQTT or REST.

LoRaWAN network design →

Installation notes for UAE projects

  • Thermostats that receive setpoint commands use downlinks; network design accounts for downlink capacity and gateway duty-cycle limits.
  • Mains-powered units can operate as LoRaWAN Class C for fast response to commands.
  • Setpoint ranges suited to UAE cooling loads are configured centrally.

FAQ

Smart Thermostats — questions

Can thermostats be controlled remotely?

Yes. Setpoints, modes and fan speeds can be changed through LoRaWAN downlinks from your platform or BMS.

Do wireless thermostats integrate with an existing BMS?

Yes. Data and control can be mapped to BACnet or Modbus objects, or exchanged over MQTT or REST, depending on the BMS.

Used in

Solutions using this device

Selecting devices for a project?

Tell us about your site, assets and existing systems. A LoRaWAN specialist will review your requirements and propose a practical architecture — no obligation.
