Single Phase Wall Mount Energy Meter — Modbus Energy Meters

Energy Meters

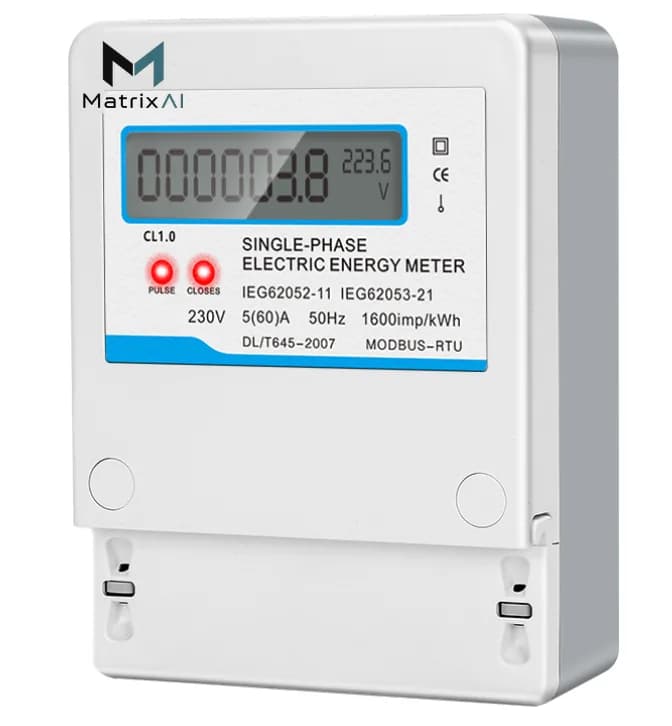

Single Phase Wall Mount Energy Meter

  • Modbus
  • AC
  • Indoor

Compact single-phase wall mount energy meter with tamper-proof enclosure, ideal for sub-metering in apartments and small offices.

Specifications

PhasesSingle Phase
MountingWall Mount
Voltage230V AC
Current0–60A
CommunicationModbus / Lorawan
ProtectionIP51
AccuracyClass 1.0

Specifications may vary by model and region. Final selection is confirmed during solution design.

Applications

Where the Single Phase Wall Mount Energy Meter is used

Electricity submetering is the most common first step in a building IoT project: it shows where energy goes, allocates cost to tenants and cost centres, and exposes waste that never appears on a monthly utility bill.

  • Tenant and cost-centre energy allocation in commercial towers and mixed-use developments
  • HVAC, chiller, pump and lift energy monitoring for FM teams
  • Main incomer and maximum-demand monitoring
  • Solar PV generation and self-consumption tracking
  • Consumption anomaly alerts, such as equipment left running out of hours

How it connects

The Single Phase Wall Mount Energy Meter communicates over Modbus RTU. It can be wired into an existing BMS or SCADA, or connected wirelessly by pairing it with a Modbus-to-LoRaWAN converter that polls its registers and sends them over LoRaWAN, which avoids new data cabling.

Modbus to LoRaWAN integration →

Installation notes for UAE projects

  • Meter rooms in UAE towers are often in basements or risers; we confirm LoRaWAN coverage there during the RF survey, or add an indoor gateway or LoRa Mesh hop.
  • Existing Modbus meters do not need replacing: a Modbus-to-LoRaWAN converter can poll several meters on one RS485 bus.
  • CT ratio, wiring (3P3W or 3P4W) and register map are recorded during commissioning so readings are correct from day one.
  • Interval data (typically 15 minutes) is delivered to your BMS, CAFM, billing system or dashboard over MQTT or REST.

FAQ

Energy Meters — questions

Can these meters be used for tenant billing?

Meters used for billing should carry the appropriate accuracy class and certification, and the billing process must follow your utility and regulatory obligations. We confirm the right model during design.

How often do LoRaWAN energy meters report?

Typical intervals are 5 to 30 minutes. The interval is chosen to balance data resolution against network airtime, especially on large meter fleets.

Do I need to replace existing Modbus meters?

Usually not. Existing Modbus RTU meters can be connected wirelessly through a Modbus-to-LoRaWAN converter, which polls the registers and sends them as LoRaWAN uplinks.

Selecting devices for a project?

Tell us about your site, assets and existing systems. A LoRaWAN specialist will review your requirements and propose a practical architecture — no obligation.
