Water Level LoRaWAN Sensor — LoRaWAN Water Metering & Leak Detection
Water Level LoRaWAN Sensor view 2

Water Metering & Leak Detection

Water Level LoRaWAN Sensor

  • LoRaWAN
  • Solar
  • Outdoor

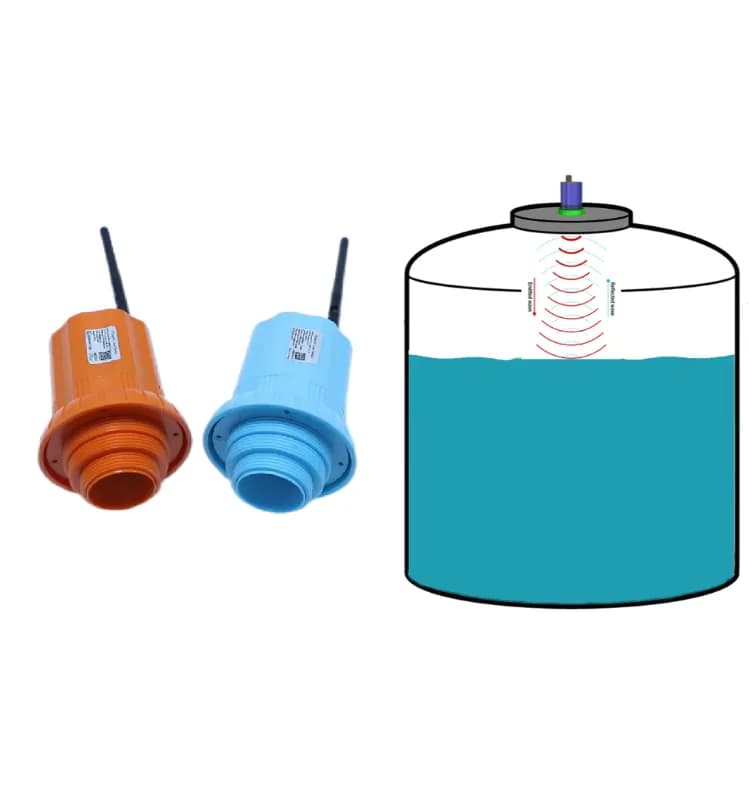

Non-contact ultrasonic water level sensor with LoRaWAN connectivity for tanks, reservoirs, rivers, and flood monitoring applications.

Specifications

TechnologyUltrasonic
Range0.2–10 m
Accuracy±3 mm
CommunicationLoRaWAN Class A
PowerSolar + Battery
ProtectionIP67
Operating Temp-20°C to +70°C
CertificationsCE, FCC

Specifications may vary by model and region. Final selection is confirmed during solution design.

Applications

Where the Water Level LoRaWAN Sensor is used

Water metering and leak detection pay back faster than almost any other building IoT use case: one undetected riser leak or overflowing tank can cost more than the whole monitoring system.

  • Bulk and tenant water submetering
  • Leak detection under sinks, in plant rooms, risers and ceiling voids
  • Tank level monitoring with high and low alarms
  • Pump run status and dry-run protection alerts
  • Irrigation metering and night-flow analysis to find hidden leaks

How it connects

The Water Level LoRaWAN Sensor is a native LoRaWAN device. It joins any standard LoRaWAN network through a gateway and a network server such as ChirpStack, using the EU868 frequency plan commonly used in the UAE. Its uplinks are decoded on the network server and delivered to your platform, BMS or CAFM over MQTT or REST.

LoRaWAN network design →

Installation notes for UAE projects

  • Battery-powered meters and leak sensors suit locations with no power, such as risers and ceiling voids.
  • Water meter chambers and basements are difficult RF locations; antenna position is checked during the site survey.
  • Leak alarms can create work orders automatically in your CAFM, so a technician is dispatched within minutes.
  • Pulse-output meters can be retrofitted with a LoRaWAN pulse counter instead of being replaced.

FAQ

Water Metering & Leak Detection — questions

How long do battery-powered water sensors last?

Battery life depends on reporting interval, radio conditions and alarm frequency. Many devices are specified for several years at typical intervals; we size intervals to meet your maintenance cycle.

Can leak alarms trigger a work order?

Yes. Alarms can be sent to a CAFM or CMMS through its API so a work order is created automatically and tracked to closure.

Can existing water meters be connected?

Meters with pulse, Modbus or M-Bus outputs can usually be connected through the matching LoRaWAN converter without replacement.

Selecting devices for a project?

Tell us about your site, assets and existing systems. A LoRaWAN specialist will review your requirements and propose a practical architecture — no obligation.
