Motorized Valve — Modbus HVAC & Building Sensors

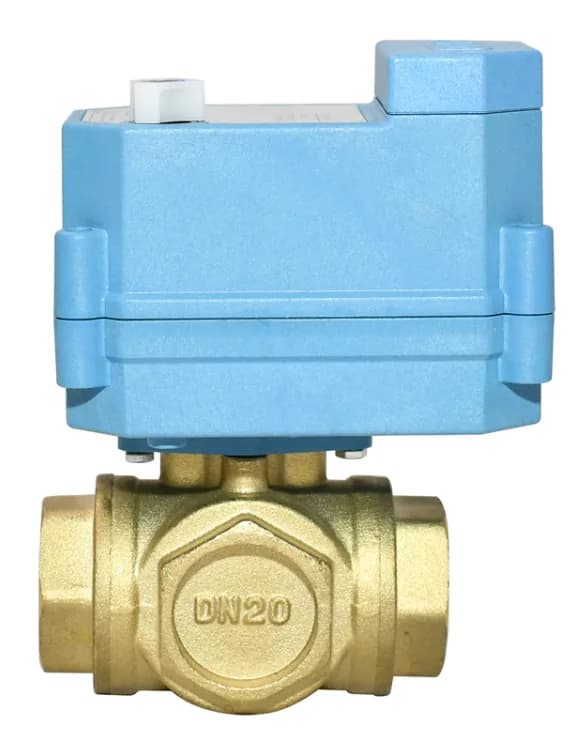

Motorized Valve view 2

HVAC & Building Sensors

Motorized Valve

  • Modbus
  • AC
  • Indoor

Motorized ball valve for hydronic systems, zone control, and chilled water applications with two-point or floating control.

Specifications

Valve BodyBrass, DN15–DN50
Actuator5 Nm, 15 sec
Control2-point or 3-point floating
CommunicationOptional Modbus
Power24VAC
Leakage<0.05% Kvs
ProtectionIP54
CertificationsCE, RoHS

Specifications may vary by model and region. Final selection is confirmed during solution design.

Applications

Where the Motorized Valve is used

HVAC and building sensors give FM teams visibility of air handling, ducts, valves and plant between maintenance visits, and let control strategies run on real measurements.

  • Duct temperature, humidity and CO₂ monitoring on AHUs
  • Filter condition alerts from differential pressure
  • Chilled-water valve control and actuator feedback
  • Digital and analog I/O for legacy equipment status and alarms
  • Edge controllers bridging field devices to BACnet, Modbus or MQTT

How it connects

The Motorized Valve communicates over Modbus RTU. It can be wired into an existing BMS or SCADA, or connected wirelessly by pairing it with a Modbus-to-LoRaWAN converter that polls its registers and sends them over LoRaWAN, which avoids new data cabling.

Modbus to LoRaWAN integration →

Installation notes for UAE projects

  • BACnet and Modbus devices are mapped into the existing BMS object list so operators keep their familiar interface.
  • Where cabling is impractical, I/O signals can be carried over LoRaWAN with a converter.
  • Plant rooms are often RF-difficult; LoRa Mesh or an in-room gateway can be used.

FAQ

HVAC & Building Sensors — questions

Will these devices work with our existing BMS?

Devices with BACnet or Modbus interfaces integrate directly. LoRaWAN devices are integrated through a network server and a BACnet or Modbus mapping layer.

Can legacy plant with only dry contacts be monitored?

Yes. Digital and analog input devices read run status, alarms and 4–20 mA or 0–10 V signals and report them wirelessly.

Selecting devices for a project?

Tell us about your site, assets and existing systems. A LoRaWAN specialist will review your requirements and propose a practical architecture — no obligation.
